Overprint

A silkscreen editor for your KiCad boards.

or drop your board export here

Export to JLCPCB

JLCPCB setup guide

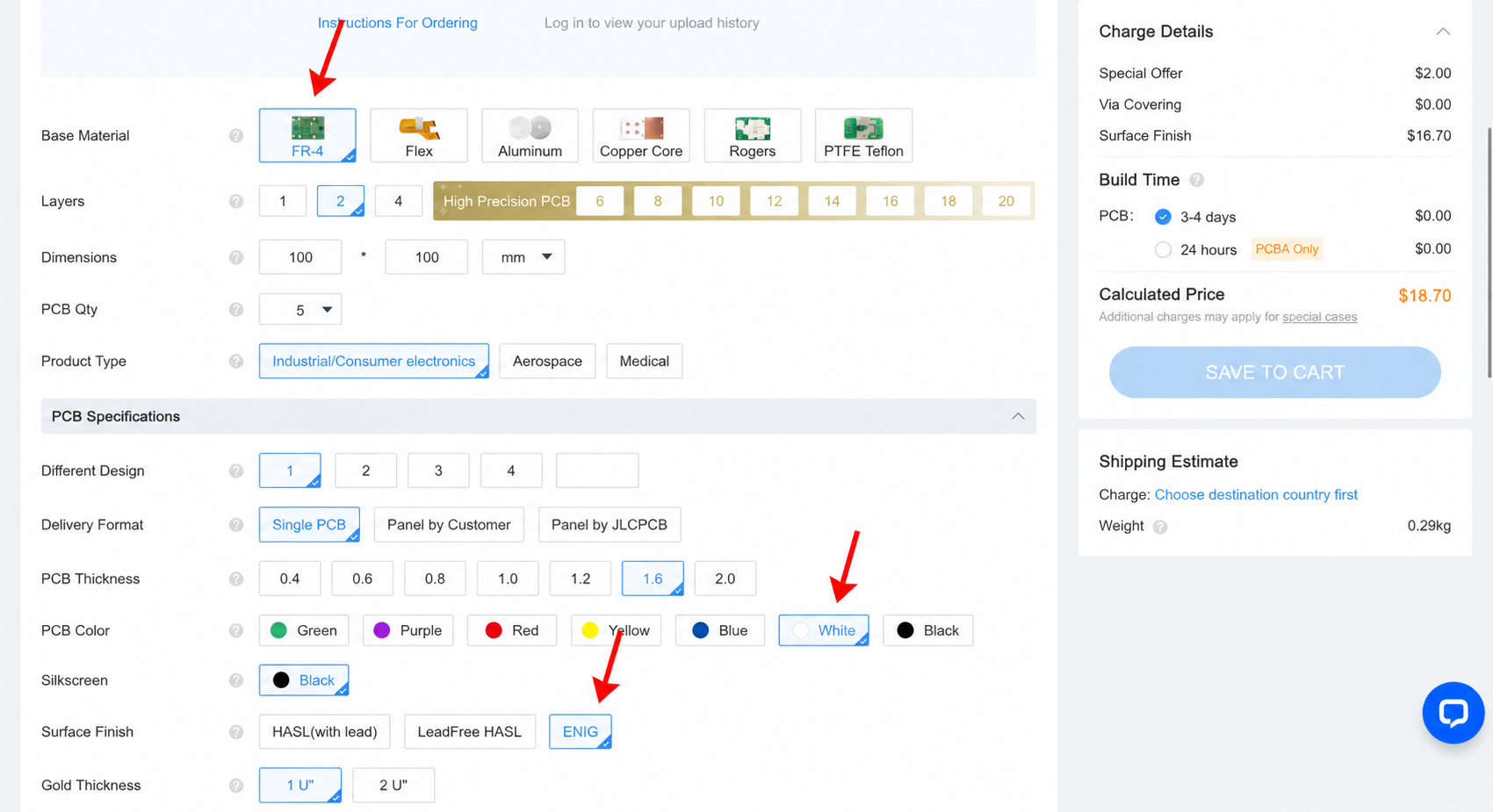

JLCPCB settings with White solder mask, ENIG finish and 1 microinch gold selected. — Choose White, ENIG and 1 µin gold.

JLCPCB guide ↗

Open another board?

Save this project locally if you want to pick it up later. Opening another board replaces the current project and its browser autosave. Your artwork won’t carry over.

Sync with KiCad

Open your PCB in KiCad with the Overprint plugin installed, then scan again.

Use a pairing code instead

In KiCad, open Tools → External Plugins → Overprint Sync to copy its pairing code. Use this app address:

Pairing code

Import PCB

Drop your board export here

1
Download the plugin
Save the Overprint plugin ZIP. Keep it zipped.
Download plugin
2
Install with PCM
In KiCad’s project manager, open Plugin and Content Manager → Install from File… and choose the ZIP. Restart the PCB Editor after saving your work.
3
Export your board
Open your PCB in KiCad 10. Choose Tools → External Plugins → Export to Overprint, then save the .overprint-board file.
4
Bring it into Overprint
Open Import PCB in the editor and choose your export, or drag it into the editor.
